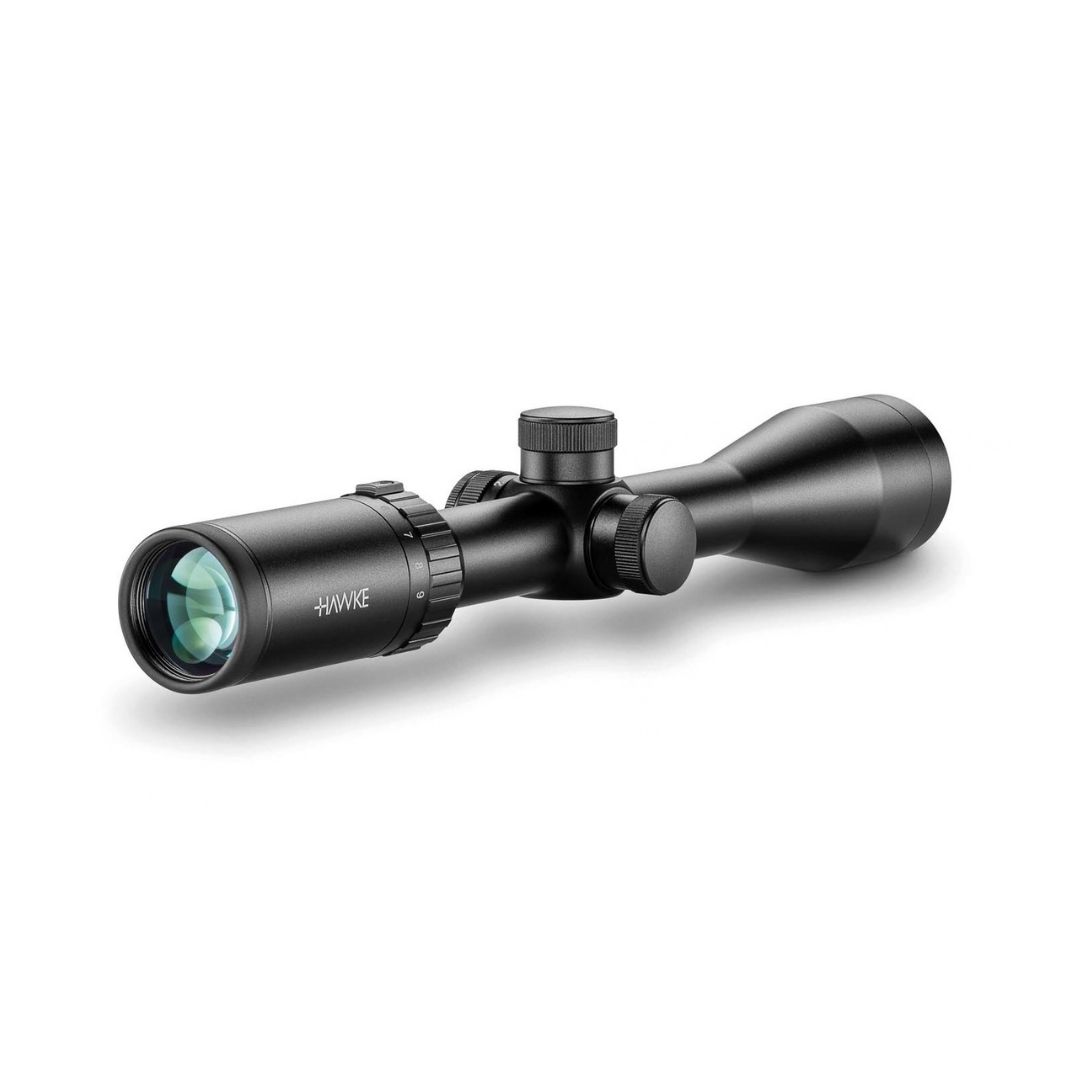

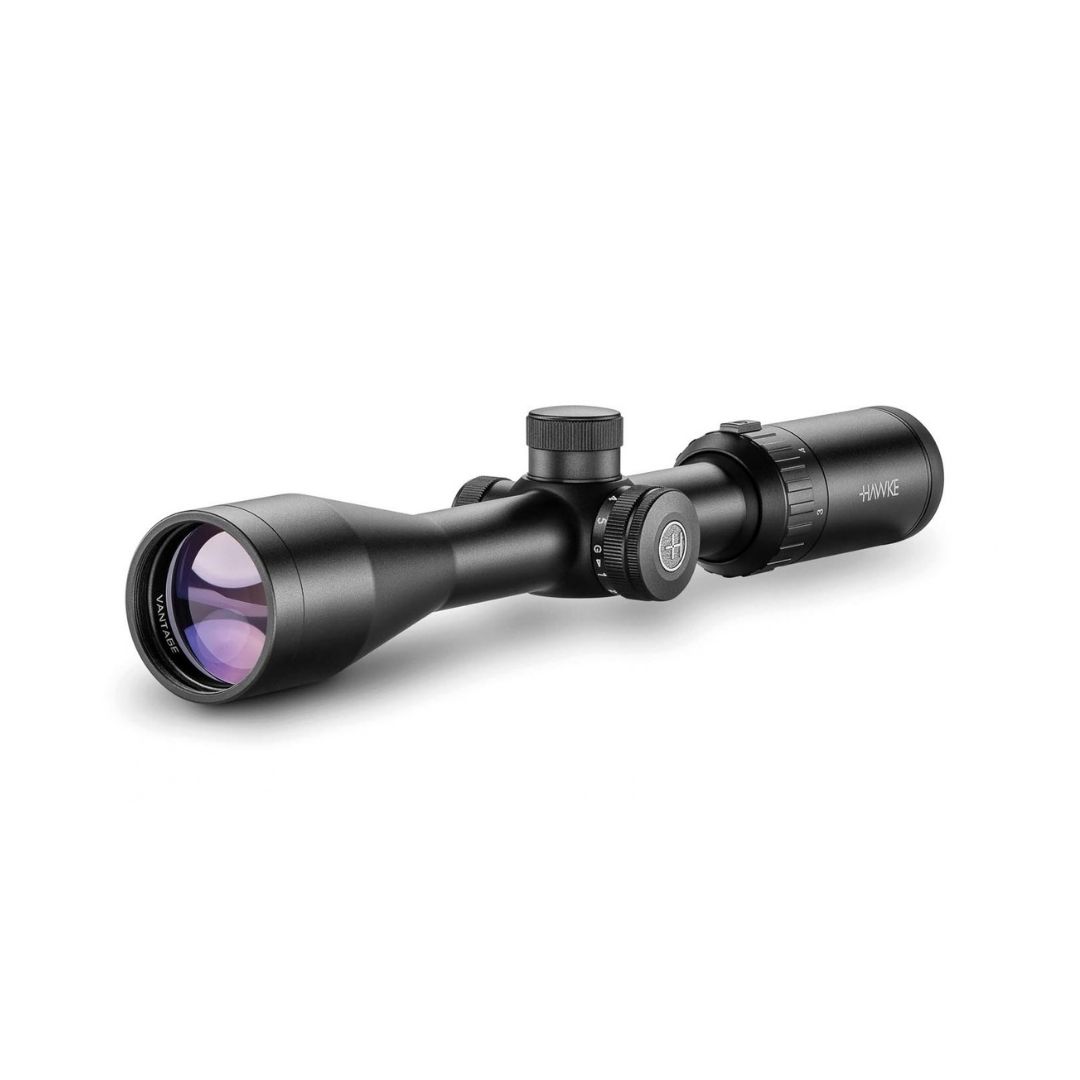

The Hawke Vantage IR 3-9×40, featuring the popular Mil Dot IR reticle, is a top choice for hunters who value compactness, simplicity, and impeccable optical quality.
Key Features and Benefits
Versatile 3-9x magnification and 40mm objective lens: Ideal for both quick close-range shooting and precision at medium distances. Its compact size ensures the rifle remains well-balanced.
H2 Optical System: Advanced Hawke optics deliver a sharp, clear, and high-contrast image across the entire magnification range.

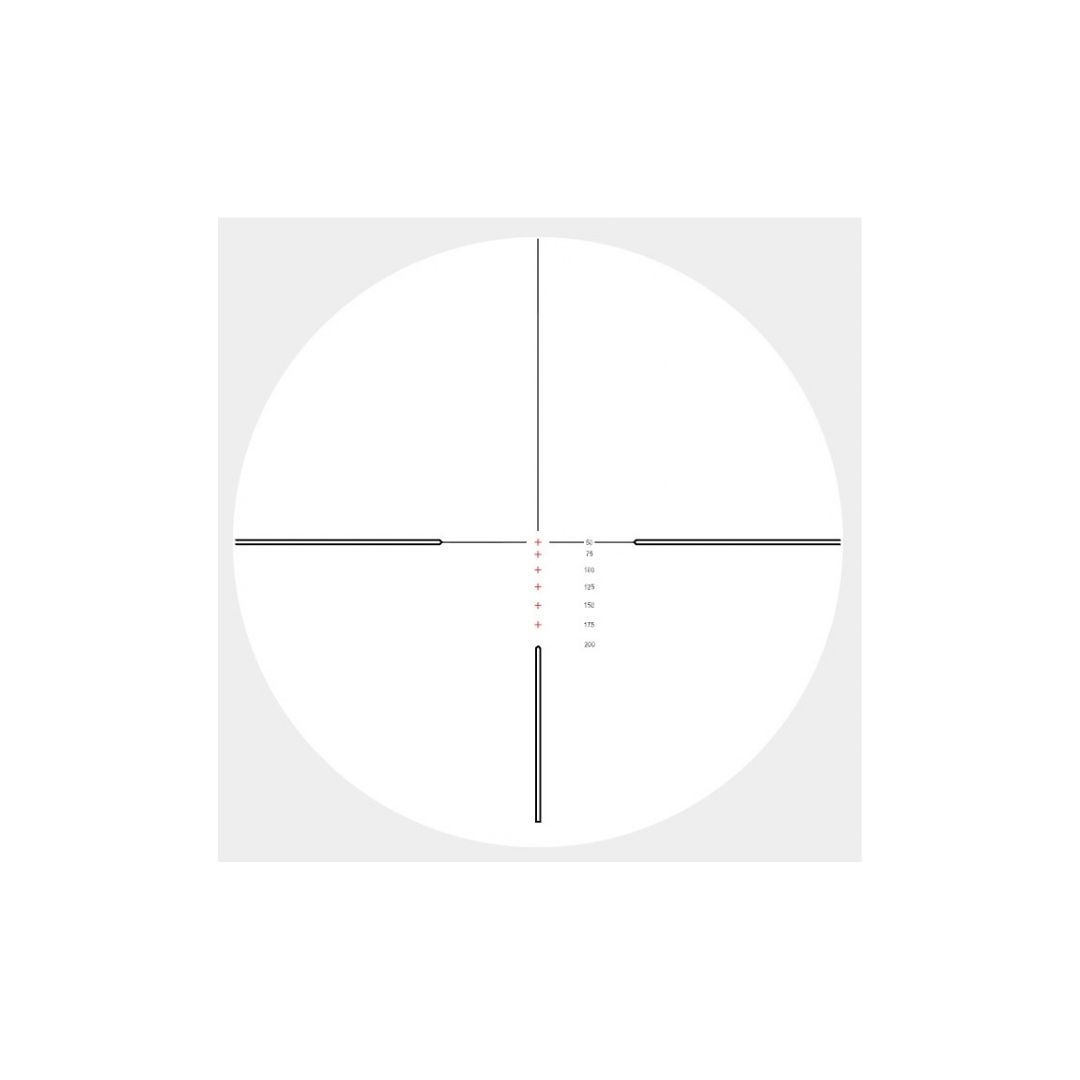

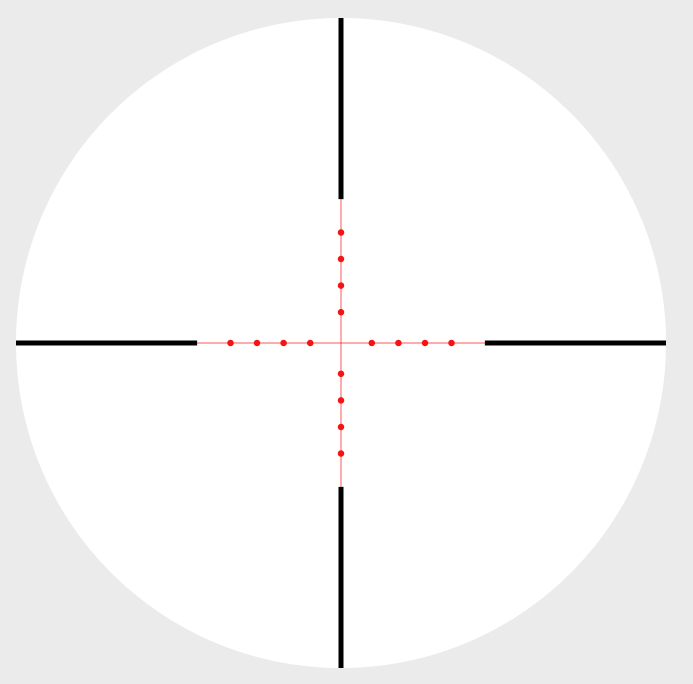

Illuminated Mil Dot Reticle: The classic dot-based Mil Dot reticle allows for easy holdover and windage adjustments at varying distances. The glass-etched reticle features red and green illumination (5 levels each) but can also be used without illumination (black reticle).
Low-profile capped turrets: Prevent accidental adjustment changes while moving through forests or dense brush.
1-inch (25.4 mm) mono-tube chassis: Lightweight (only 430 g) yet extremely durable, reliably withstanding recoil.
11-layer Fully Multi-Coated lenses: Ensure maximum light transmission and minimize reflections. Reliability and protection in all weather conditions
Complete sealing: Nitrogen-purged housing prevents internal lens fogging due to temperature or humidity changes.
Durability: Waterproof and shockproof; rated for all calibers.
Hawke Lifetime Warranty
Technical specifications
| Specification | Technical Details |
|---|---|
| Objective Lens | 40 mm |
| Reticle | Mil Dot IR |
| Illumination | 5 levels (Red and Green) |
| Illumination Control | Stepped Rheostat |
| Parallax | Fixed, 100 yds (91 m) |
| Magnification | 3–9x |
| Optical System | System H2 |
| Focal Plane | SFP (Second Focal Plane) |
| Scope Tube Diameter | 1 inch (25.4 mm) |
| Field of View | 39–12.7 ft @ 100 yds / 13–4.2 m @ 100 m |
| Field of View (°) | 7.4–2.4° |
| Eye Relief | 3.5 in / 90 mm |
| Exit Pupil | 0.52–0.17 in / 13.3–4.4 mm |
| Click Value | 1/4 MOA |
| Elevation Adjustment Range | 100 MOA |
| Windage Adjustment Range | 100 MOA |
| Ocular Type | Fast Focus |
| Power Selector | Knurled Posi-Grip |
| Lens Coating | Fully Multi-Coated – 11 Layers |

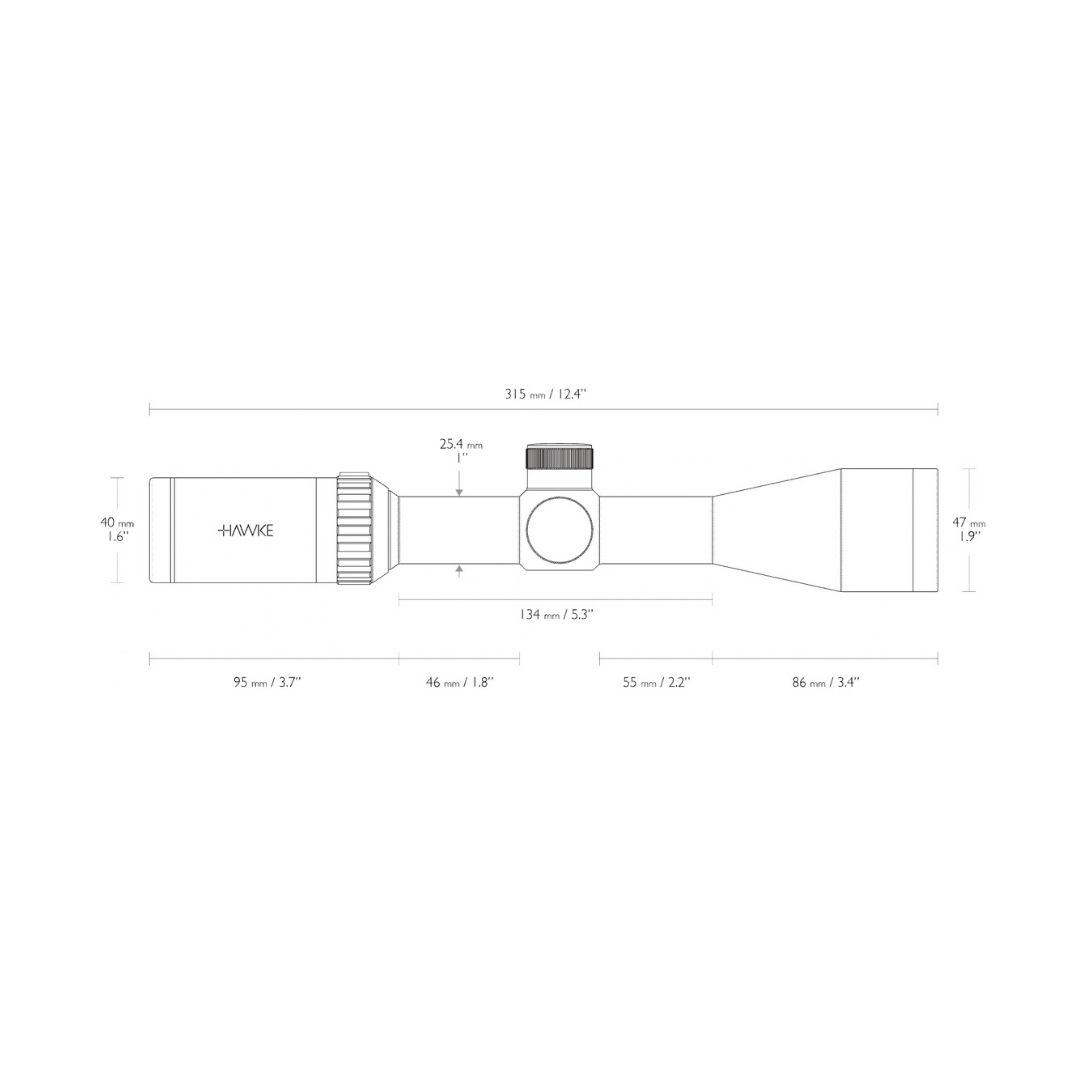

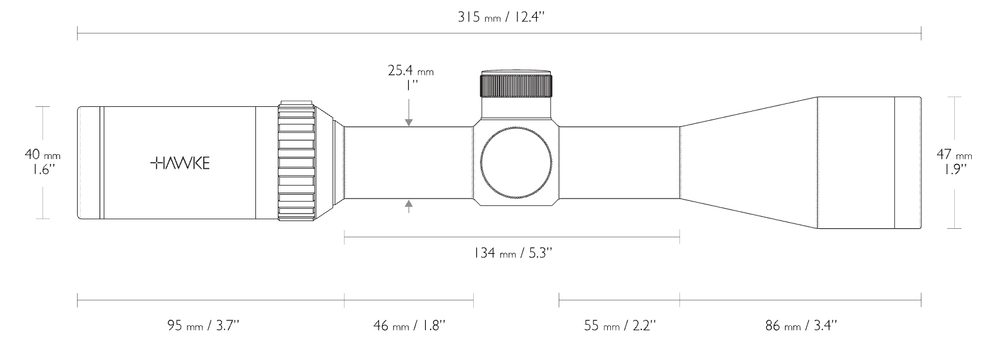

| Length | 12.4 in / 315 mm |
| Weight | 15.2 oz / 430 g |
| Elevation Turret Type | Capped, Low-Profile, Resettable to Zero |
| Windage Turret Type | Capped, Low-Profile, Resettable to Zero |
