Highly sensitive thermal sensor
Telos thermal imagers use an extremely sensitive thermal sensor with NETD below 18 mK, delivering top-class thermal image quality and precise object recognition even in the most challenging weather conditions.
Pulsar Image Boost technology
Thanks to Pulsar Image Boost technology, Telos thermal imagers provide premium image quality with a high level of detail, clarity, and contrast.
Zoom control via lens ring
Telos series thermal imagers are easy to adjust using the focus and zoom ring mounted directly on the lens, enabling fast and intuitive control.

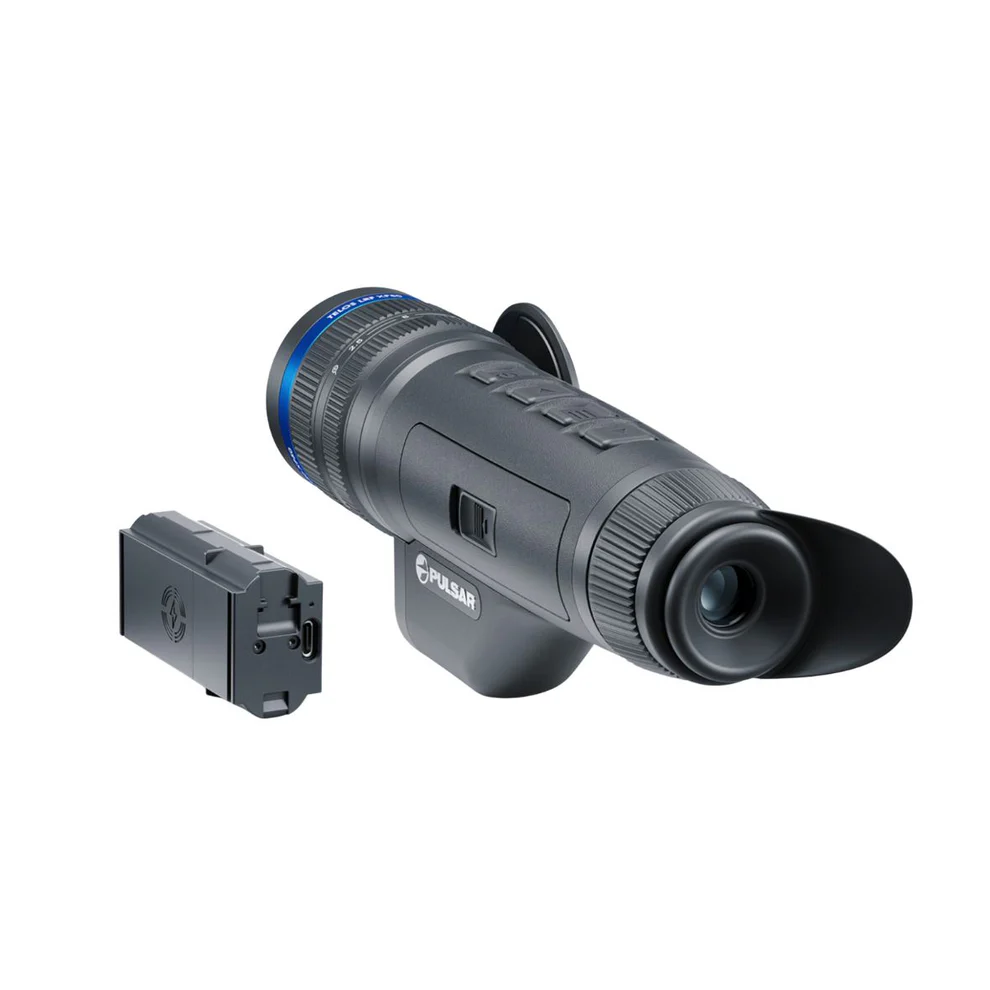

Replaceable battery with fast charging capability
The new quick-swap LPS 7i lithium-ion battery provides over 8 hours of operation and is compatible with the Power Delivery fast-charging protocol.
Ergonomic housing
The rubber-coated housing ensures a secure grip in both dry and rainy conditions. It is highly resistant to wear, temperature extremes, dust, and moisture, and protects the device from drops. The housing is easy to clean and retains its appearance over time. The Telos thermal imager is suitable for both right- and left-handed users.
Precise measurements
This Pulsar Telos thermal imager is equipped with a laser rangefinder (LRF) that allows distance measurements of up to 1 kilometer with an accuracy of ±1 meter.
Detection range
A standard 1.8-meter-tall object can be detected at distances of up to 1,800 meters.
Specifications
Model: Pulsar Telos LRF XP50
Resolution: 640×480 px @ 17 µm (NETD <18 mK)
Lens: F50 / 1.0
Magnification: 2.5–10× (4× digital zoom)
Field of view (H×V): 12.4×9.3° / 21.8×16.3 m @ 100 m
Detection range: 1800 m
Pixel size: 17 µm
Thermal sensitivity (NETD): <18 mK
Frame rate: 50 Hz
Eye relief: 14 mm
Display:
Type: AMOLED HD
Resolution: 1024×768 px
Video / photo format: .mp4 / .jpg
Internal memory: 64 GB
Connectivity:
Wi-Fi: Yes
Mobile app: Stream Vision 2
Environmental protection:
IP rating (IEC 60529): IPX7 (water-resistant)
Operating temperature: −25 to +40 °C
Power supply:
Output voltage: 3.0–4.2 V
Battery: LPS 7i Li-Ion
Capacity: 6400 mAh
Battery life (at 22 °C): up to 8.5 h
External power supply: 5 V / 9 V (USB-C Power Delivery)
Laser rangefinder:
Laser safety class (IEC 60825-1:2014): Class 1
Wavelength: 905 nm
Maximum measuring range: 1000 m
Measurement accuracy: ±1 m
Dimensions: 238 × 72 × 90 mm
Weight: 0.72 kg (with LPS 7i battery)
