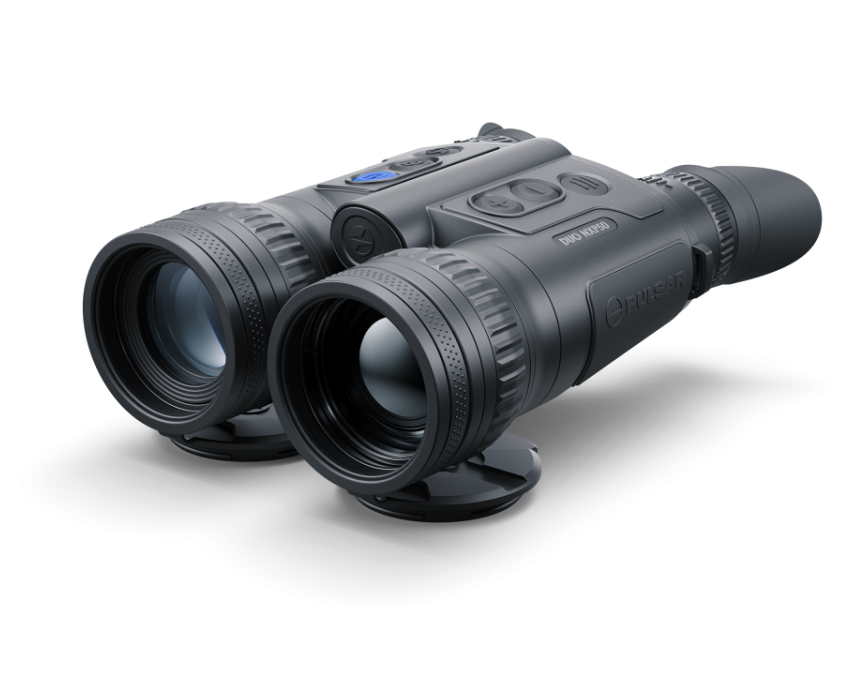

Thermal and night vision binoculars
Classic design. Compact size

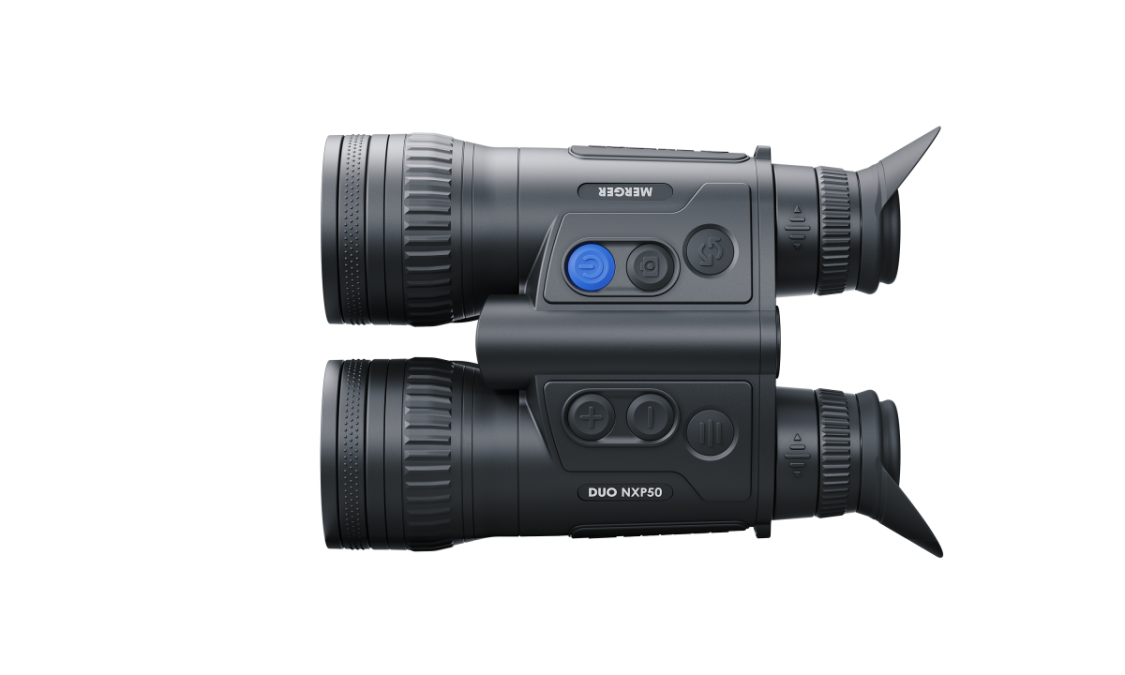

Merger thermal binoculars are designed in the classic style of daytime binoculars. Thanks to their compact size, they fit comfortably in the hands, feature an attractive design, and offer excellent ergonomics. Six control buttons are positioned within easy reach and are convenient to use. pasted
Comfortable viewing

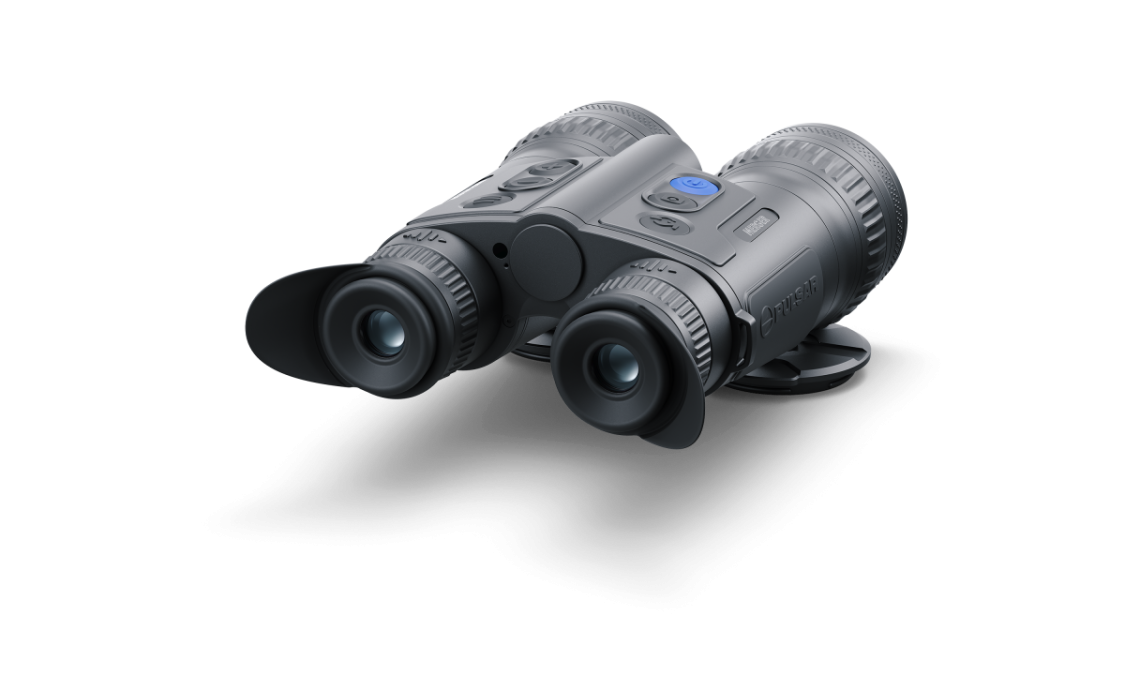

The dual-eyepiece configuration reduces eye strain during long observation sessions and improves the natural perception of objects. The human brain processes visual information from two channels simultaneously and merges it into a single image. When observing with only one eye, visual input is limited, which can quickly lead to fatigue and discomfort during prolonged use. pasted
High-resolution night vision sensor – 1920×1200 pixels
Thanks to the high-resolution sensor and a 50 mm lens, animals can be observed throughout the night without an illuminator. With an illuminator, the image quality approaches daytime-like clarity. pasted
High-resolution thermal sensor – 640×480 pixels @ 17 µm
The thermal sensor with NETD <25 mK ensures excellent detail recognition even in the most challenging conditions with low temperature contrast. Even the smallest temperature differences remain clearly visible in rain, fog, and cold mornings. pasted
Large F50/1.0 aperture lens
The lens plays a crucial role in detecting even minimal thermal radiation. Maximum detection efficiency is achieved by combining the fast Merger F50/1.0 lens with a highly sensitive thermal sensor. The Merger delivers highly detailed, high-contrast images even in rain or fog, when temperature contrast is minimal. pasted
Advanced image processing algorithms
Merger thermal binoculars use a new image optimization approach based on observation goals and conditions, ensuring high-quality rendering of both targets and background. Three signal amplification levels combined with smoothing filters and fine brightness and contrast adjustments allow hunters to detect animals at long distances in varying weather and temperature conditions, as well as assess trophy characteristics. pasted
Dual battery system – up to 10 hours of operation
Merger is powered by two rechargeable batteries: a built-in 4 Ah battery and a replaceable 3.2 Ah battery. A single charge provides up to 10 hours of operation. The textured design of the replaceable battery housing helps identify correct positioning for quick and easy replacement, even in complete darkness. pasted
Long detection range
The powerful lens combined with a highly sensitive 640×480 @ 17 µm thermal sensor provides excellent detection performance. A standard 1.8-meter-tall object can be detected at distances of up to 1,800 meters in complete darkness. pasted
3×–24× variable magnification
Digital zoom up to 8× enhances focus and improves overall object recognition at long distances. Zoom can be adjusted stepwise in 2× increments or continuously to achieve the optimal magnification for any situation. pasted
Wi-Fi integration with iOS and Android – Stream Vision 2 app
Built-in Wi-Fi connects the device to Android and iOS smartphones via the Stream Vision 2 app. This enables wireless firmware updates, real-time image streaming, sharing photos and videos, remote device control, and access to the latest Pulsar news. Registered users also receive 16 GB of cloud storage for captured photos and videos. pasted
IPX7 waterproof rating
With an IPX7 waterproof rating, Merger thermal binoculars operate reliably in high humidity and heavy rain and can withstand immersion in water up to 1 meter deep for 30 minutes. pasted
High-quality magnesium alloy housing
Merger is designed for long-term use in harsh conditions. The magnesium alloy housing is lightweight yet extremely durable, protecting internal components from impacts, drops, moisture, heat, and cold. The metal housing also efficiently dissipates heat, reduces image noise, and ensures stable performance during extended observation sessions. pasted
Enhanced Wi-Fi connectivity – 2.4 / 5 GHz support
In addition to the standard 2.4 GHz Wi-Fi band, Merger supports the 5 GHz band, offering higher bandwidth, faster data transfer, better noise resistance, and improved connection stability for smoother operation with a smartphone. pasted
Wide operating temperature range: −25 to +50 °C
Merger thermal binoculars are designed to operate across a wide temperature range from −25 to +50 °C. The frost-resistant AMOLED display features fast response time and delivers sharp images even when observing in motion. pasted
Built-in photo and video recorder
Merger features an integrated video recorder. The internal memory allows storage of hours of video and thousands of photos. With a single button press, users can capture photos or start video recording. Recorded material can be transferred to a computer via USB-C. Merger owners also receive 16 GB of Pulsar cloud storage. pasted
High-contrast HD AMOLED display
The HD AMOLED display delivers a vivid, high-contrast, and bright image. AMOLED technology ensures smooth, high-resolution visuals while maintaining energy efficiency. pasted
8 color palettes
Eight color palettes allow users to optimize the device for specific tasks and changing conditions. White Hot, Black Hot, and Red Hot are ideal for detection; Rainbow and Ultramarine enhance recognition and identification; Red Monochrome, Sepia, and Violet are best suited for prolonged nighttime observation. pasted
Technical specifications
Pulsar Merger
Optical characteristics
Eye relief: 15 mm
Magnification: 3–24× (thermal) | 2–16× (digital)
Detection range: up to 1800 m
Field of view at 100 m: 12.4° / 21.8 m (thermal) | 17.5° / 30.7 m (digital)
Interpupillary distance: 56–71 mm
Lens: F50/1.0 (thermal) | F50/1.4 (digital)
Performance
Operating temperature: −25 to +50 °C
Protection rating: IPX7
External power supply: 5 V (USB-C)
Battery type: Li-Ion APS3 battery pack (3.2 Ah external + 4.0 Ah internal)
Battery life: up to 10 h
Recording & storage
Video format: .mp4
Photo format: .jpg
Photo / video resolution: 1280×960
Internal memory: 64 GB
Connectivity
Wi-Fi frequency: 2.4 / 5 GHz
Standard: IEEE 802.11 b/g/n/ac (WPA)
App support: Stream Vision 2
Sensor & display
Thermal sensor resolution: 640×480
Digital sensor: Full-color CMOS 1920×1200
Pixel size: 17 µm
Frame rate: 50 Hz
NETD: <18 mK
Display: AMOLED HD 1280×960
General
Weight: 1.2 kg (complete set)
