Premium quality line Nocpix
Nocpix LUMI series thermal imagers are premium quality thermal imagers from the Nocpix line. This LUMI series stands out with its cutting-edge technology and highest quality image solutions. It guarantees unparalleled image accuracy and clarity even in the most challenging conditions, giving you a detailed image.
High quality image
The 640×512 resolution provides a clear and detailed image, allowing you to recognize the shapes, textures and contours of objects, which is especially important when observing small details or when objects are far away. NETD ≤18mK thermal sensitivity guarantees that even the smallest temperature differences will be clearly visible. This allows you to monitor subtle changes in heat and obtain accurate data even in challenging conditions. The high frame rate of 50Hz ensures smooth image transmission and stability, allowing you to effectively track fast-moving objects without image distortion or interference.
The most compact monocular with rangefinder

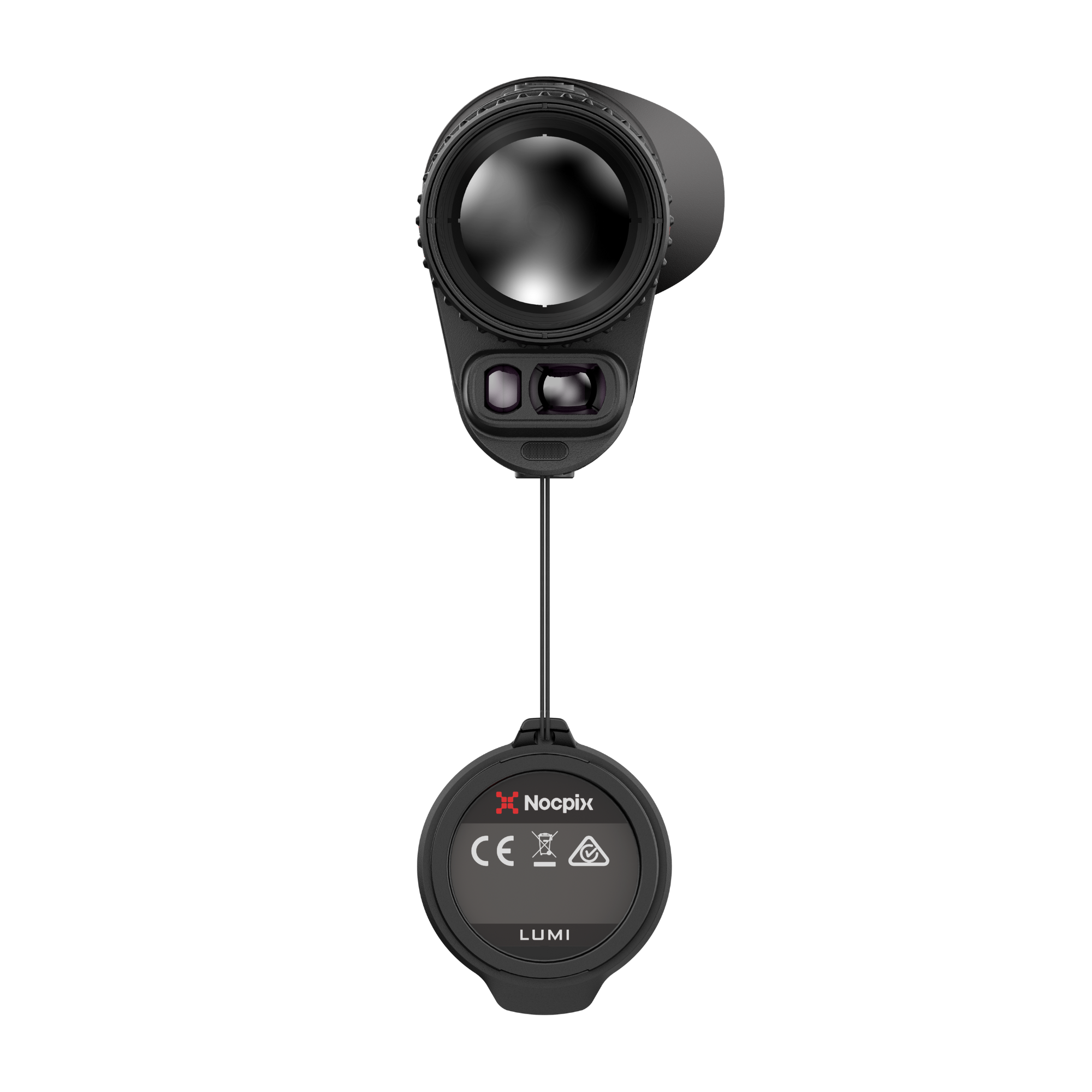

The integrated laser rangefinder accurately measures the distance up to 800 meters, ensuring a reliable determination of the distance of the object.
HD 1024×768 AMOLED screen
With a resolution of 1024×768 pixels, the screen provides a clear and detailed image that allows you to easily distinguish small details and features of the object. This is especially useful when you need to accurately assess a situation or analyze small items. AMOLED technology is characterized by excellent color reproduction, which provides exceptional contrast and image saturation. This allows you to see more detail and provides an image that is clearer and more pleasing to the eye.
Reality+ Technology
The new thermal imager Nocpix LUMI H35R is made with Reality+ technology. This technology eliminates “image noise”, increases image contrast and highlights details, creating a much sharper and clearer thermal image. This technology results in significantly higher and superior image quality.
The light transmission of the lens
The F0.9 lens transmits 20% more light compared to a regular F1.0 lens, making the images transmitted by the Nocpix LUMI series thermal imagers even brighter and clearer.
Detection capabilities
The 35 mm lens together with the 640×512 resolution allows efficient and more detailed analysis of the observed objects. Detection distance up to 1800 meters.
Protection class IP67
The device is completely dustproof and completely waterproof, even when submerged to a depth of 1 meter for up to 30 minutes. This ensures that the Nocpix LUMI H35R can withstand various weather conditions, including rain, snow, and mud, and is also resistant to water penetration, allowing it to be used even in the most extreme conditions.
Silent buttons
Silent buttons are specially designed to improve user experience and functionality in various situations. These buttons are silent, making them perfect for when you need to keep quiet, such as when hunting. This helps to avoid disturbances and does not make noise that could scare the animals. In addition, the silent buttons are resistant to dust and water, which increases the durability and reliability of the device, ensuring its reliable operation even in extreme conditions.
Color palette
The LUMI H35R thermal imager is equipped with various color palettes, including red and green palettes designed to protect the eyes from fatigue, allowing you to use the thermal imager for long periods of time without eye strain.
Compact

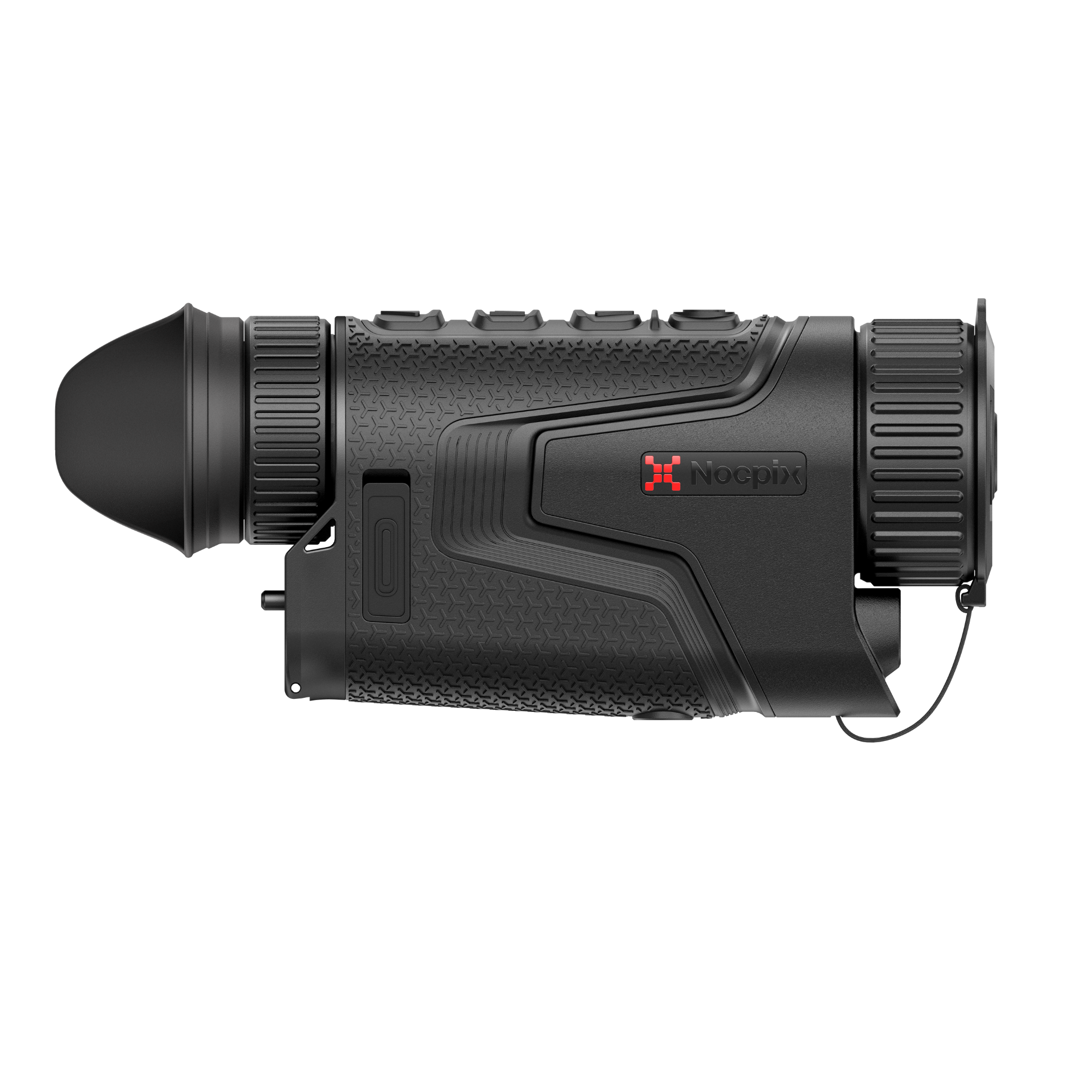

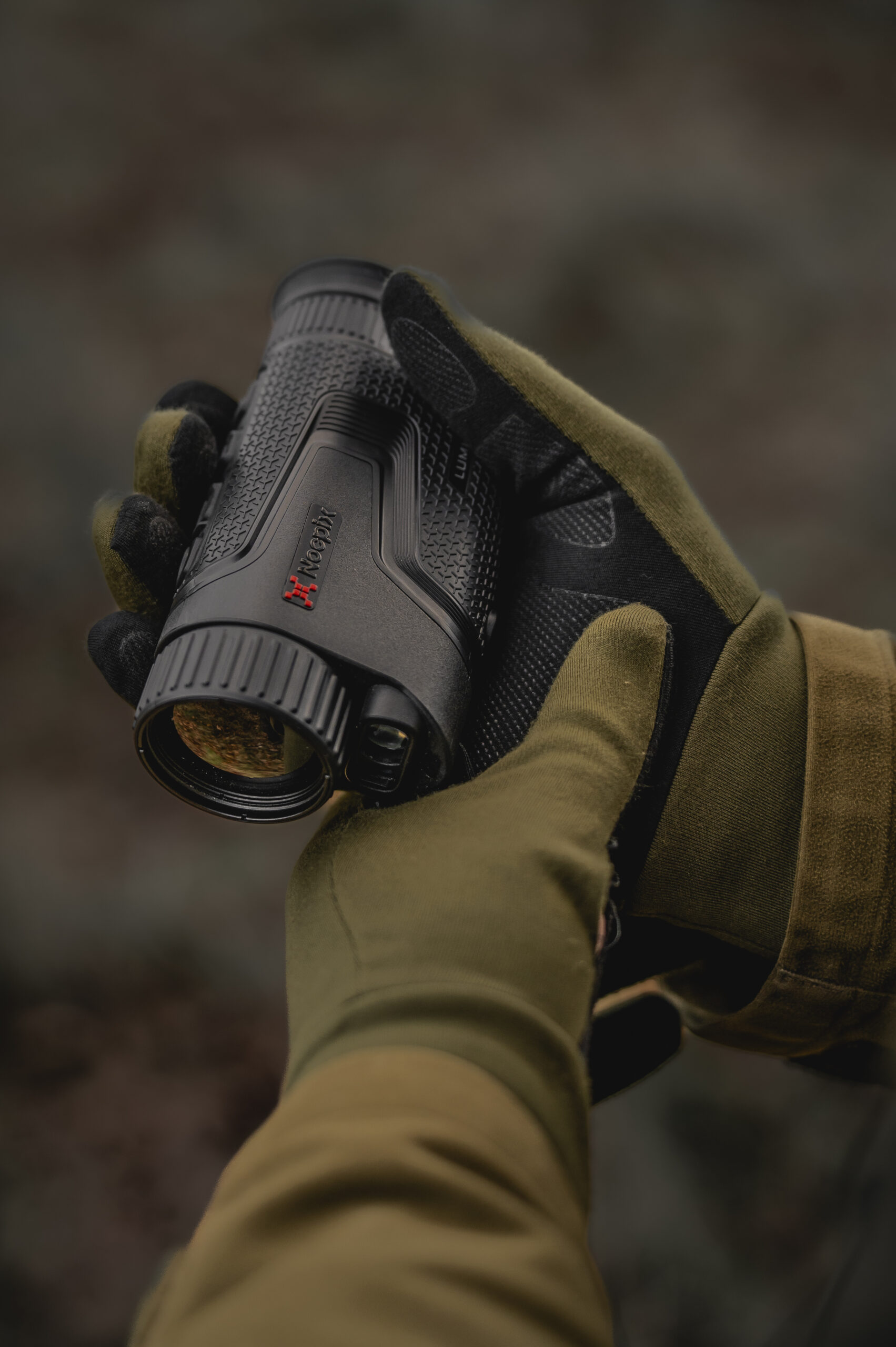

LUMI series thermal imagers feature an ergonomic design, compact size (147×47×74 mm) and light weight (385 g), making it easy to carry around.
LUMI series thermal imagers – convenience in changing batteries

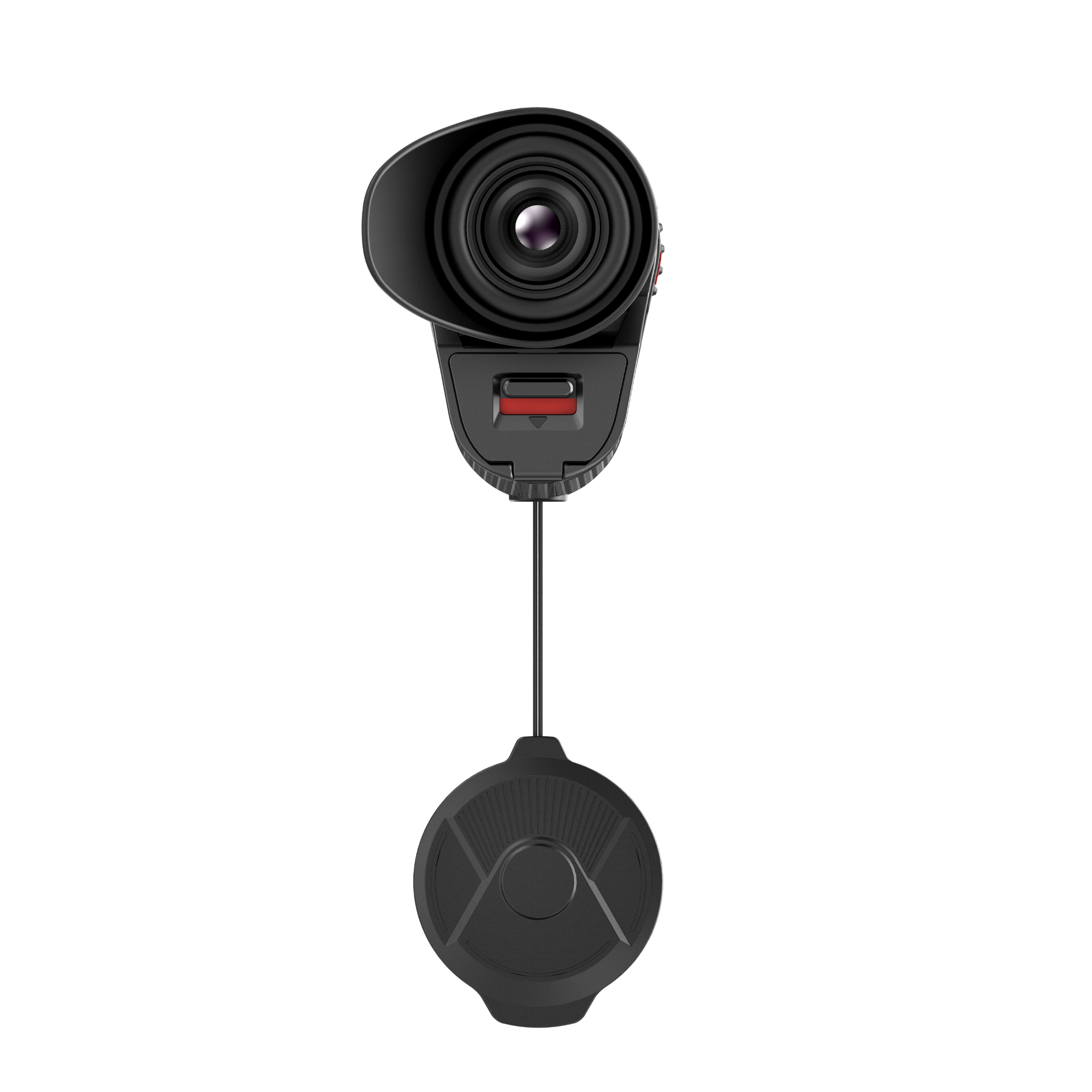

The LUMI series thermal imagers use 18650 batteries that can be inserted in either direction thanks to the built-in reverse polarity protection. This means that no matter which way you insert the battery, the device will operate safely and reliably. This feature is especially useful when changing batteries at night or in low light, ensuring easy use without the risk of damaging the equipment.
Specifications
| Model | LUMI H35R |
| Resolution | 640 × 512 |
| Pixel size, μm | 12 |
| Thermal sensitivity NETD, mK | ≤18 |
| Frame rate, Hz | 50 |
| Lens, mm | 35 F0.9 |
| Field of view, ° | 12.5 × 9.4/22 × 16 |
| zooming in | 2.5 ~ 20 |
| Detection distance | 1800 |
| Dioptres | -5 ~ + 5 |
| Ekranas | AMOLED 1024×768 |
| Battery | Replaceable 18650 |
| Max. operating time, (t=22°C) hours | 4,5 |
| Sound recording | Yes |
| Memory capacity, GB | 32 |
| security class | IP67 |
| Range finder | Class 1, 800 m |
| Operating temperature, °C | -20 to +50 |
| Weight, g (with battery) | 385 |
| Size, mm | 147x47x74 |
