Premium quality line Nocpix
Nocpix LUMI series thermal imagers are the latest InfiRay premium quality thermal imagers from the Nocpix line. This new LUMI series is an updated and improved IRIS series, featuring state-of-the-art technology and premium video solutions. It guarantees unmatched image accuracy and clarity even in the most challenging conditions, giving you a detailed image.
High quality image
The 640×512 resolution provides a clear and detailed image, allowing you to recognize the shapes, textures and contours of objects, which is especially important when observing small details or when objects are far away. NETD ≤18mK thermal sensitivity guarantees that even the smallest temperature differences will be clearly visible. This allows you to monitor subtle changes in heat and obtain accurate data even in challenging conditions. The high frame rate of 50Hz ensures smooth image transmission and stability, allowing you to effectively track fast-moving objects without image distortion or interference.
HD 1024×768 AMOLED screen
With a resolution of 1024×768 pixels, the screen provides a clear and detailed image that allows you to easily distinguish small details and features of the object. This is especially useful when you need to accurately assess a situation or analyze small items. AMOLED technology is characterized by excellent color reproduction, which provides exceptional contrast and image saturation. This allows you to see more detail and provides an image that is clearer and more pleasing to the eye.
Reality+ Technology
The new thermal imager Nocpix LUMI H35 is made with Reality+ technology. This technology removes “image noise”, increases image contrast and highlights details, creating a much sharper and clearer thermal image. This technology results in significantly higher and superior image quality.
The light transmission of the lens
The F0.9 lens transmits 20% more light compared to a regular F1.0 lens, making the images transmitted by the Nocpix LUMI series thermal imagers even brighter and clearer.
Detection capabilities
The 35 mm lens together with the 640×512 resolution allows efficient and more detailed analysis of the observed objects. Detection distance up to 1800 meters.
Protection class IP67
The device is completely dust-proof and fully waterproof, even when submerged up to 1 meter deep for up to 30 minutes. This ensures that the Nocpix LUMI H35 can withstand a variety of weather conditions, including rain, snow, and mud, as well as being water-resistant, allowing it to be used even in the most extreme conditions.

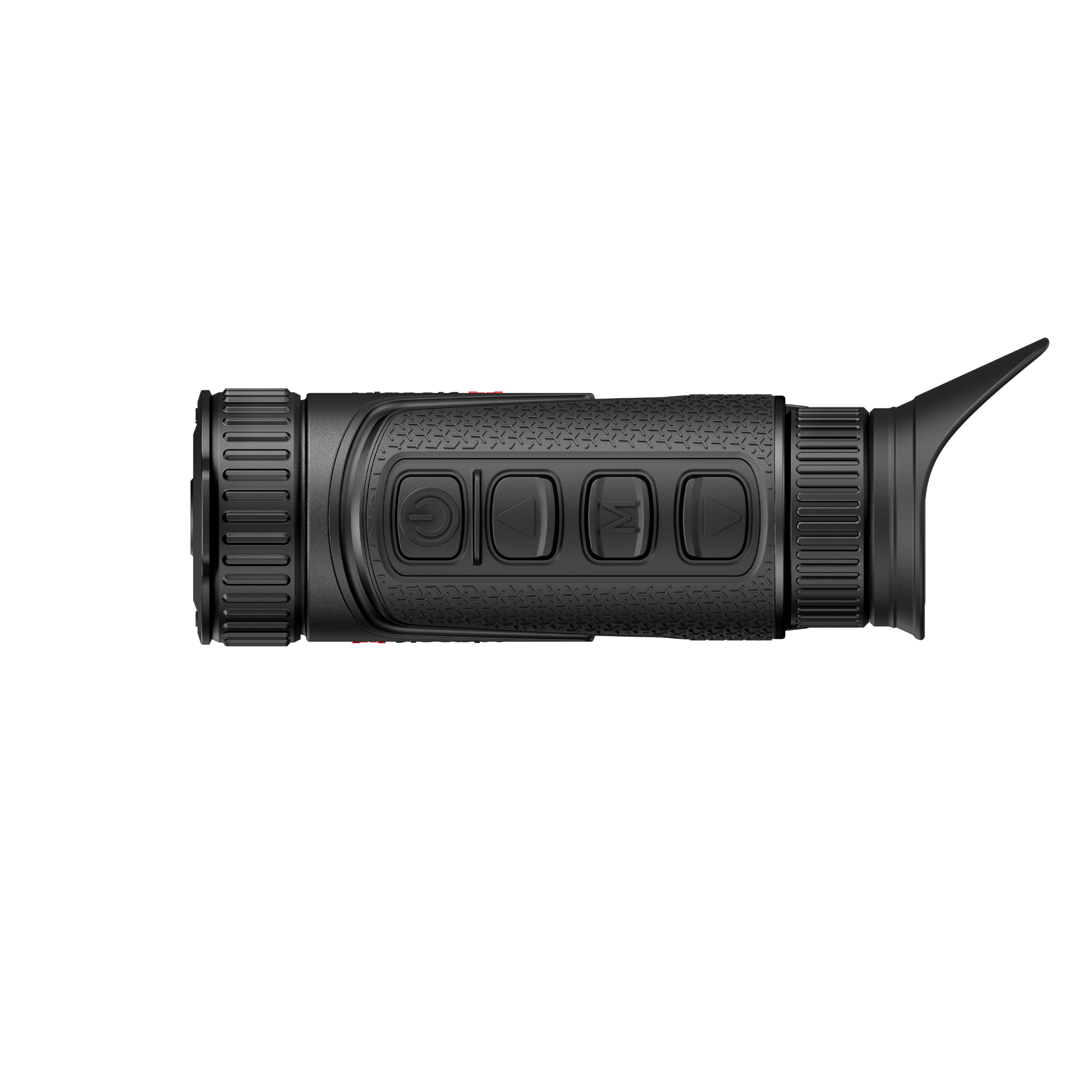

Silent buttons
Silent buttons are specially designed to improve user experience and functionality in various situations. These buttons are silent, making them perfect for when you need to keep quiet, such as when hunting. This helps to avoid disturbances and does not make noise that could scare the animals. In addition, the silent buttons are resistant to dust and water, which increases the durability and reliability of the device, ensuring its reliable operation even in extreme conditions.
Color palette
The LUMI H35 thermal imager is equipped with various color palettes, among which red and green palettes are designed to protect the eyes from fatigue, allowing the thermal imager to be used for a long time without tiring the eyes.
Compact

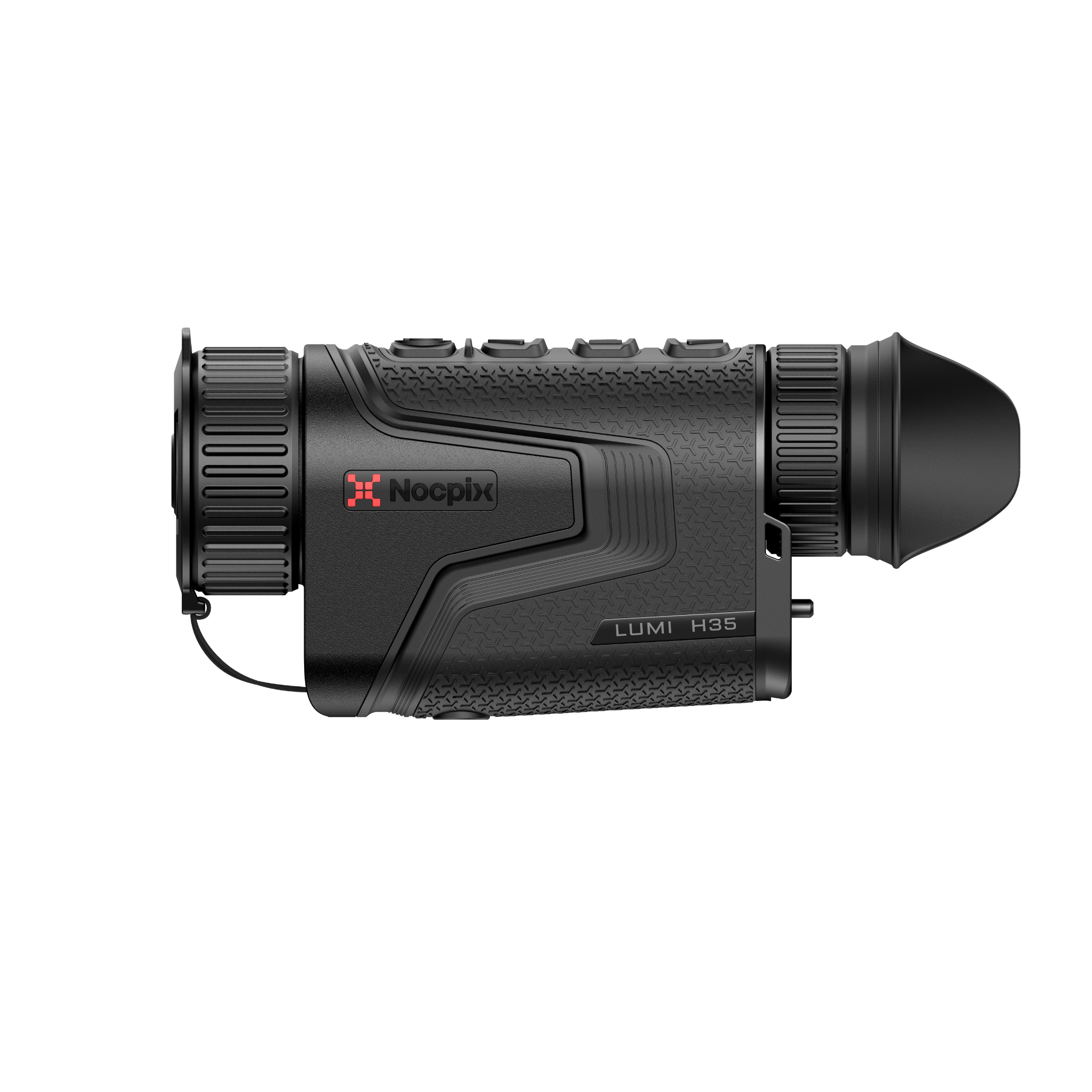

LUMI series thermal imagers feature an ergonomic design, compact size (143×47×74 mm) and light weight (345 g), making it easy to carry around.
Field of view
The 12.5×9.4° field of view allows you to focus more precisely on a smaller area, providing more detail and better visibility of objects at further distances. This is particularly useful when observing small or distant objects while maintaining a high level of detail. The 22×16° field of view provides a wider overview, allowing you to see a larger part of the environment at once. This is ideal for situations where you want to quickly survey a wider area or monitor moving objects in a wider area. This combination of two fields of view allows the user to flexibly switch between a detailed observation of an object and a wider overview of the environment, making it very useful at both close and far distances.
Specifications
| Model | LUMI-H35 |
| Resolution | 640 × 512 |
| Pixel size, μm | 12 |
| Thermal sensitivity NETD, mK | ≤18 |
| Frame rate, Hz | 50 |
| Lens, mm | 35 F0.9 |
| Field of view, ° | 12.5 × 9.4 / 22 × 16 |
| zooming in | 2.5 ~ 20 |
| Detection distance | 1800 |
| Dioptres | -5 ~ + 5 |
| Ekranas | AMOLED 1024×768 |
| Battery | Changed in 18650 |
| Max. operating time, (t=22°C) hours | 4,5 |
| Sound recording | Yes |
| Memory capacity, GB | 32 |
| security class | IP67 |
| Operating temperature, °C | -20 to +50 |
| Weight, g (with battery) | 345 |
| Size, mm | × × 143 47 74 |
