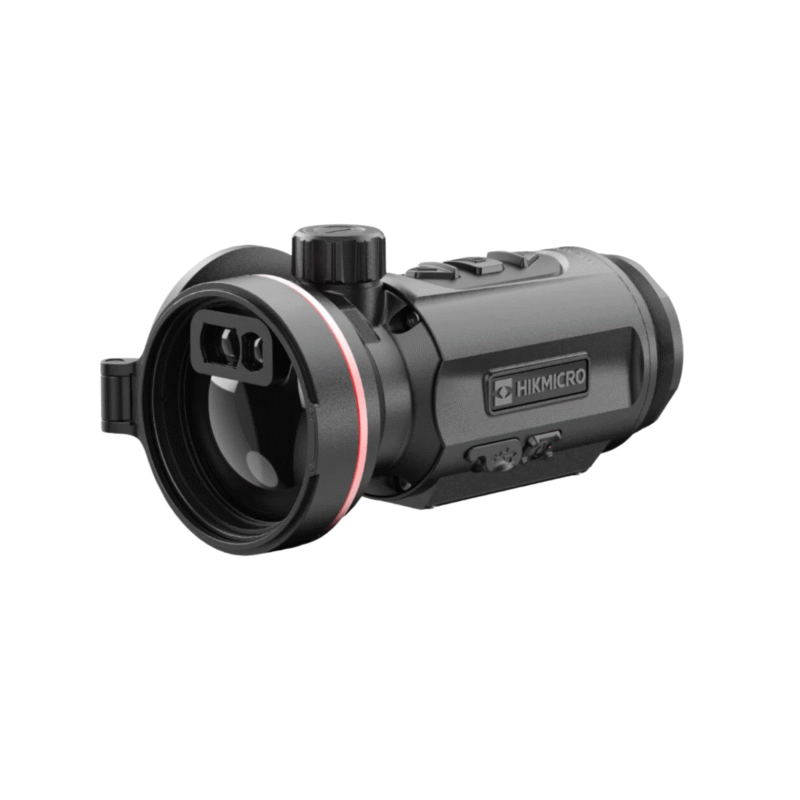

TQ50CL thermal attachment
Equipped with a 12μm 640 sensor and a 50mm lens (focal length), the Thunder TQ50CL not only delivers impressive image quality but also ensures much higher accuracy. Its 2600m detection distance and a rangefinder integrated into the lens (up to 1000m) greatly contribute to successful hunting in open and wide areas.
Unparalleled visual experience on a 0.49-inch screen
Experience outstanding viewing on the HIKMICRO THUNDER 3.0’s 0.49-inch screen, which displays crystal-clear images in 1920×1080 Full HD resolution. The vivid colors and large display ensure every detail is shown accurately, immersing the user in the “thermal world.”
Higher thermal sensitivity (NETD <15mK) for extremely clear images
The HIKMICRO THUNDER 3.0 is equipped with a highly sensitive thermal sensor (NETD <15mK), allowing detection of even the smallest temperature differences. This means that even in difficult conditions you will see a clear, detailed image — the animal’s fur, sex, age, and even antlers.
Smooth monitoring with HIKMICRO’s interference-free calibration system (HSIS)
HIKMICRO’s innovative HSIS Thermal Image Calibration System ensures smooth, interruption-free viewing and eliminates the need for manual calibration. This advanced feature provides an uninterrupted image without compromising quality, keeping hunters focused during crucial moments.
Image Pro 2.0 – enhanced detail and depth
The new Image Pro 2.0 feature optimizes visuals with a self-learning algorithm. Since every detail matters when hunting, Image Pro 2.0 helps you recognize key features more effectively and make better decisions in the field.
Clear visibility even with 15x magnification day optics
Even when paired with high-magnification day scopes (up to 15x), the HIKMICRO THUNDER 3.0 provides a stable image and easy operation, ensuring accurate long-range shots.
Innovative LRF module – compact and practical design
The HIKMICRO THUNDER 3.0 features a laser rangefinder integrated directly into the lens, making it more compact and user-friendly. (The integrated LRF module is exclusive to the TQ50CL 3.0 model.)
Virtual reticle for better shot evaluation
The virtual reticle displayed in HIKMICRO Thunder 3.0 recordings allows hunters to better assess and analyze each shot.
Specifications
| Model | TQ50CL |
| Resolution | 640 × 512 |
| Frame rate | 50Hz |
| Pixel size | 12 μm |
| IR radiation wavelength | 8μm to 14μm |
| Lens (focal length) | 50mm, F1.0 |
| NETD (sensor sensitivity) | Less than 15 mK (@25 °C, F# = 1.0) |
| Detection distance | 2600 m |
| Focusing | Focus wheel |
| Min. focusing distance | 10 years |
| Magnification | 1× |
| Field of view (H × V), degrees / m @100m | 8.8° × 7.0° / 15.4 m × 12.3 m |
| Magnification with day optics | 1-15x |
| Screen | 1920×1080 OLED |
| Color palettes | Black – Hot, White – Hot, Red – Hot, Fusion, Red Monochrome, Green Monochrome |
| Aperture size | 25 mm |
| Optimal viewing distance from the lens | 20 mm |
| Brightness adjustment | Yes |
| Adjusting the color tone | Cold, warm |
| HSIS (HIKMICRO Continuous Calibration) | Yes |
| Memory | Built-in EMMC (64GB) |
| Audio recording | Yes |
| Maximum recoil | 1000 g/0.4 ms |
| Battery type | Replaceable and rechargeable Li-ion battery (set of two) |
| Battery life | ≥5h (25 °C, with Hotspot function disabled and LRF rangefinder enabled) |
| Power supply via Type-C connector | 5 VDC, 2 A Supports external power supply. Supports on-device battery charging. |
| Protection class | IP67 |
| Dimensions | 150.3mm × 83mm × 78.1mm |
| Weight | 540g with battery |
| Operating temperature | From -30°C to +55°C |
| Protection class | IP67 |
| Height from center axis | 35.5 mm |
| Laser class | Class 1 |
| Laser wavelength | 905 nm |
| Maximum measuring distance | 1000 m |
| Measurement accuracy | ±1m |
| Minimum measuring distance | 10 years |
| LRF module integrated into the lens | Yes |
