High sensitivity sensor, NETD up to 20 mK
TD Gen3 LRF Series uses a 12 μm infrared sensor with 640×512 and 400×300 resolutions and offers optional 19 mm, 25 mm, 35 mm and 50 mm lenses that provide extremely sharp images even in complete darkness.

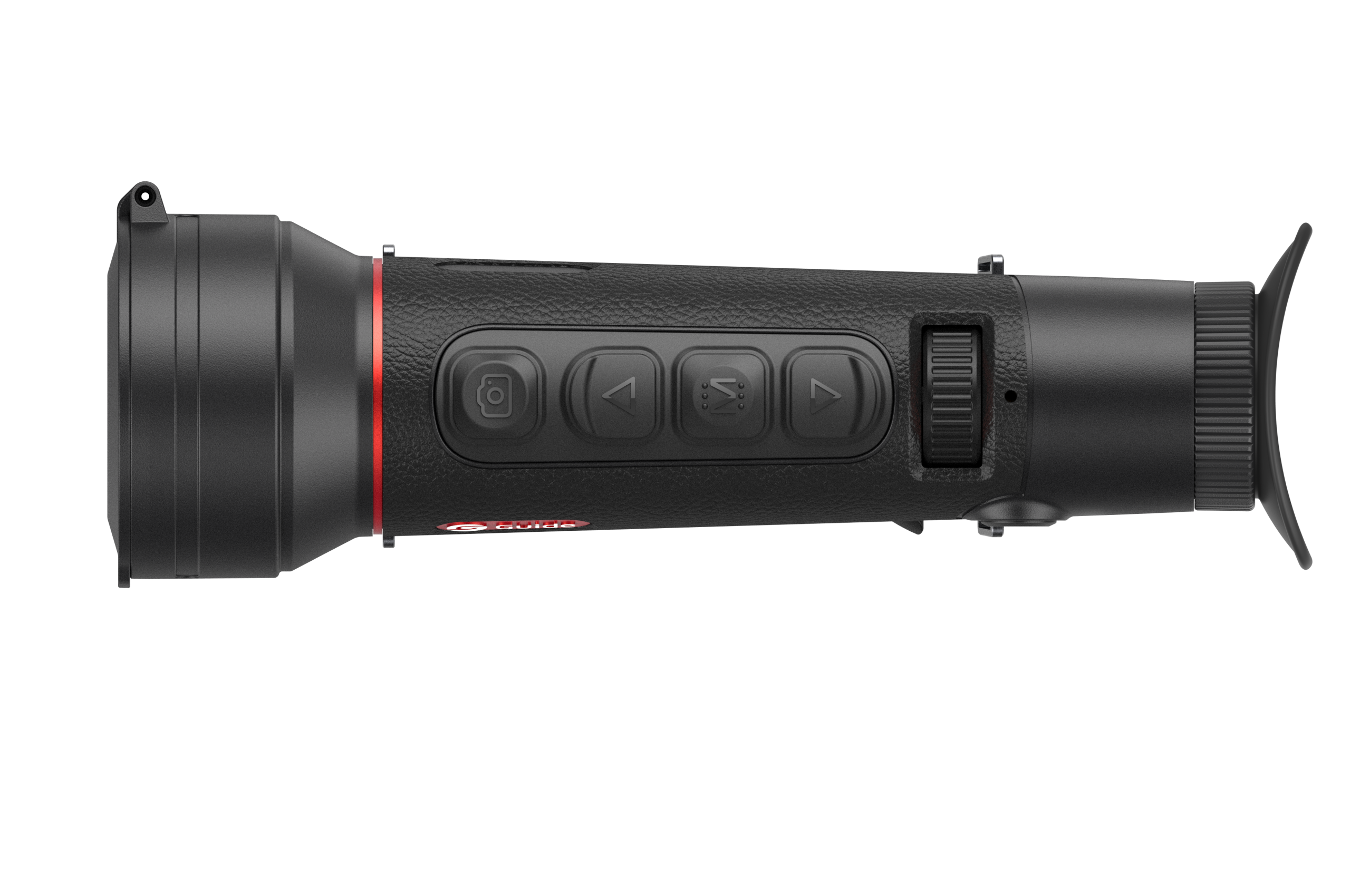

Ambidextrous design, one-handed operation
The symmetrical body design allows for comfortable operation with both left and right hands. The button layout is ergonomically adapted to the user’s habits, so the device can be operated with one hand.
Fine focus – adjustment by sliding the wheel with your fingers.
The miniature focus wheel design provides a unique fast and precise focusing experience, allowing users to adjust focus with a simple one-finger swipe.
Improved image quality – enlarged AMOLED display
Based on the previous generation, TD Gen3 LRF Series has a 0,36-inch AMOLED screen with a resolution of 1280×960, which ensures sharper details and more comfortable viewing.
Integrated LRF – precise target distance determination
The integrated laser rangefinder module is seamlessly integrated into the device design, increasing mobility and practicality. The maximum measurement range is 1000 meters, allowing you to accurately determine the location of the target.
Extended battery life – uninterrupted power
During observation, exploration and tracking in the field TD Gen3 LRF Series provides an impressive 12 hours of runtime. The replaceable 18650 battery can be inserted even in the dark, without having to distinguish between the positive and negative poles.
Smart recording, increased built-in memory
The improved smart recording feature allows you to record videos with sound. The built-in memory of up to 32 GB allows you to store more than 100 photos without worrying about running out of space.

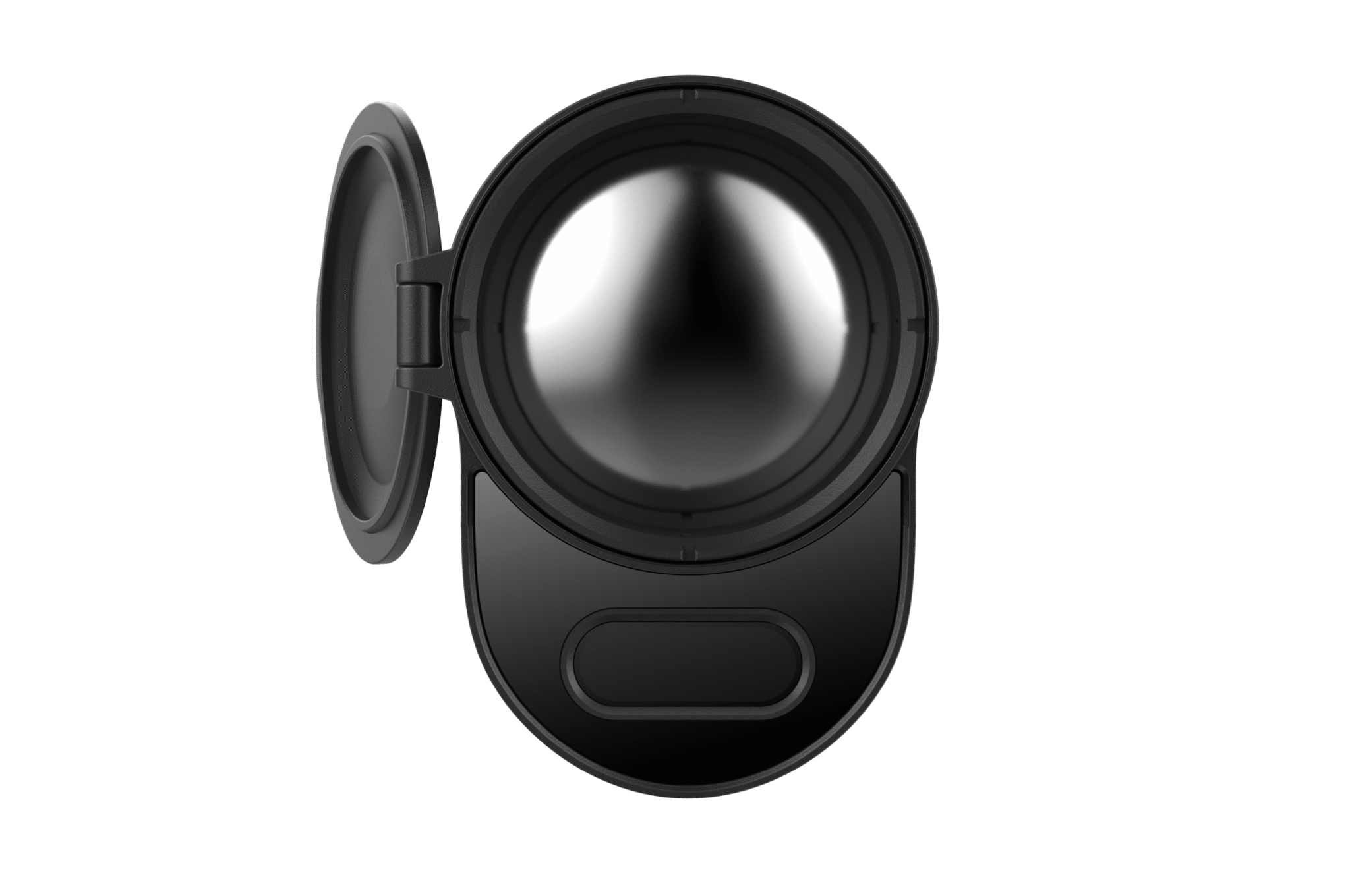

50mm lens – see further
To ensure sharp and detailed images during long-range shooting, TD Gen3 LRF Series uses 35 mm and 50 mm lenses, which allow you to see in great detail even at a distance of up to 2600 meters.
Specifications
Sensor
- Type: Uncooled VOx infrared sensor, 8-14 μm
- Resolution: 640×512 @ 12 μm
- NETD: 20 mK
- Frame rate: 50 Hz
Lens
- Lens: 50mm, F1.0
- Field of view: 8,8° × 6,6°
- Field of view at 100 m: 15 × 12 m
- Magnification: 2,6× – 20,8×
- Detection distance: 2600 m / 2800 yd
- Focusing: Manual
Ekranas
- Screen type: 0,36″ AMOLED, 1280×960 resolution
- Color palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
- Eyepiece: eye relief – 20 mm; diopter correction: -6 to +6; magnification: 13,8×
Hardware
- Laser rangefinder: 1000 m / 1090 yd
- Wi-Fi: 2.4G, 5G
- Interface: USB-C
- Others: microphone, Bluetooth
System
- Recording function: photos/videos (with audio recording)
- Memory capacity: 32 GB
Catering
- Battery type: single replaceable 18650 battery
- Operating time: 10 hours
Environmental conditions
- Operating temperature: -20°C to 50°C (-4°F to +122°F)
- Protection: IP67
Physical data
- Weight: 472g (16.65oz)
- Dimensions: 189.5 × 67.5 × 88 mm (7.46 × 2.66 × 3.46 inches)
Standard equipment
- Device, dust cloth, hand strap, eye mask, battery charger, 18650 battery ×1, 5V 2A adapter (US, UK, Australia or Europe), USB-A to USB-C cable, quick start guide, warranty card
Additional equipment (optional)
Bluetooth remote control, 18650 battery
