Ultra-light and compact. Every gram matters.

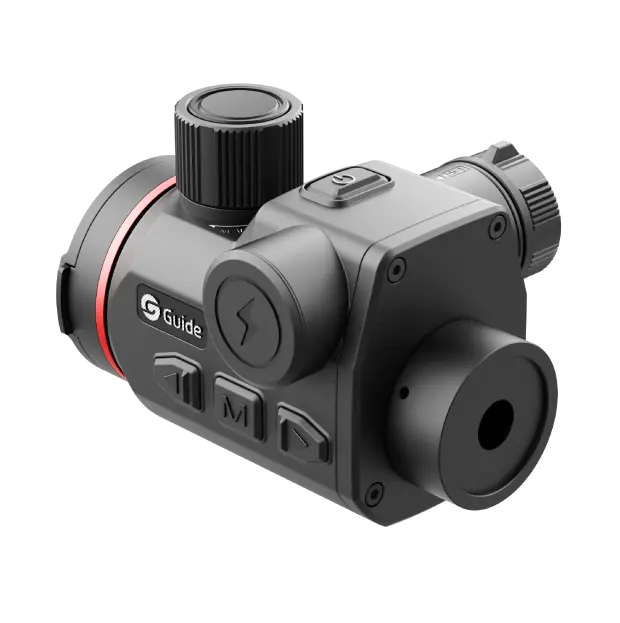

The Orion C is designed with extreme optimization of weight and size, making it one of the lightest 640×512 thermal clip-on devices on the market.
Its compact design reduces the overall equipment weight and improves balance, ensuring a more comfortable and stable hunting experience.
ApexVision Technology – Ultra-clear imaging
Developed by Guide Outdoor, ApexVision is a next-generation thermal imaging solution that redefines infrared performance in outdoor optics. Designed for all conditions, it delivers exceptionally clear images with smooth, shadow-free motion, high-quality visuals, and outstanding detail at long distances.
Fast 3-second startup. Ready when you need it.
The Orion C powers on in just 3 seconds, ensuring it is instantly ready for fast movements or unexpected encounters in the field.
AI-powered algorithm
Take image clarity to the next level. The upgraded Hyper-Light 2.0 AI algorithm enhances contrast, sharpness, detail rendering, target highlighting, and tone balance, making long-range observation easier and more effective.
Ultra-low power consumption. Hunt all night.
Optimized energy consumption ensures extended operation time.
A single 18500 battery provides up to 6.5 hours of runtime, while two batteries are enough for a full night of hunting.

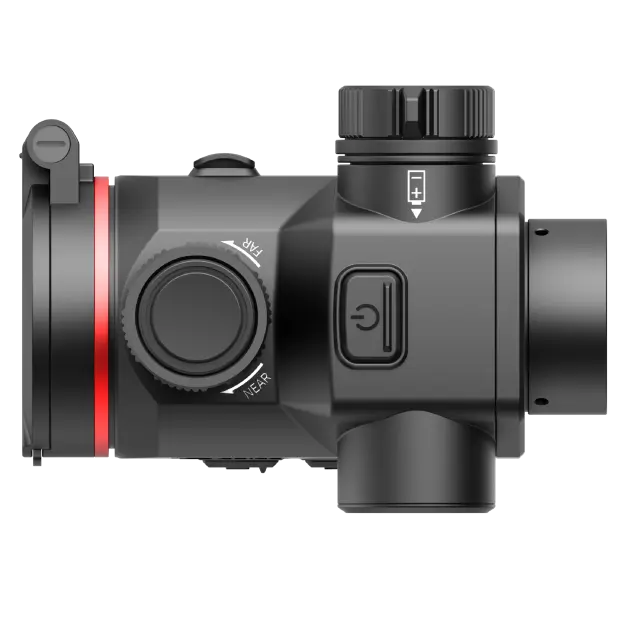

Precise focusing. Smooth control even with gloves
The optimized focus knob provides tactile feedback for smooth and accurate focusing.
A simplified button layout ensures intuitive operation in all conditions.
Stable, reliable, built for real hunting conditions
The Orion C withstands recoil up to 6000 J, maintaining stability and reliability even during continuous shooting.
Its IP67 rating ensures dependable performance in rain, fog, and harsh outdoor environments..
Comfortable viewing for long observation
The 0.49″ AMOLED display delivers clear and vivid images, reducing eye strain even during extended nighttime use.
Core Technology
Built on the full ApexVision S1 system architecture:
Hyper-Light 2.0 algorithm
ApexCore S1 detector
Nexus 1.0 platform
Specifications
Sensor
- Uncooled VOx infrared detector (8–14 μm)
- Resolution: 400 × 300 @ 12 μm
- NETD: 15 mK
- Frame rate: 50 Hz
Optics
- Lens: 35 mm, F0.9
- Field of view: 7.9° × 5.9°
- FOV @100 m: 13 × 10 m
- Magnification: 1×
- Detection range: 1800 m / 1950 yards
- Focus: Manual
Display
- 0.39″ AMOLED, 1024 × 768
- Color palettes: White, Black, Red, Green, Iron Red, Blue, Sepia
- Eye relief: 20 mm
Interface
- USB-C (power supply)
Power
- Battery type: Single replaceable 18500 battery
- Operating time: up to 8 hours
Durability
- Operating temperature: -20°C to +50°C
- Recoil resistance: 6000 J
- Protection rating: IP67
Dimensions & Weight
- Weight: 285 g / 10.05 oz
- Size: 99 × 73 × 68 mm
Package Includes
- Device
- Carrying case
- Accessory pouch
- Cleaning cloth
- Battery charger
- 2 × 18500 batteries
- USB-A to USB-C cable
- Quick start guide
- Warranty card
Optional accessories:
Additional 18500 battery
Adapter ring
